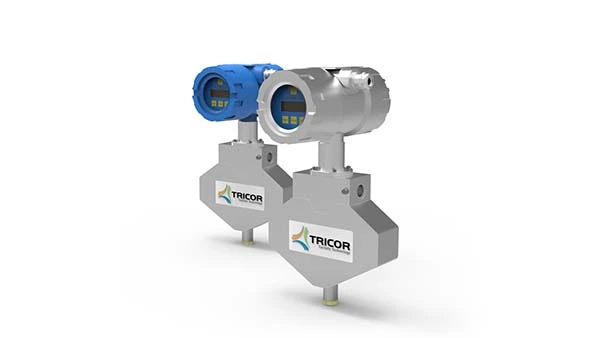

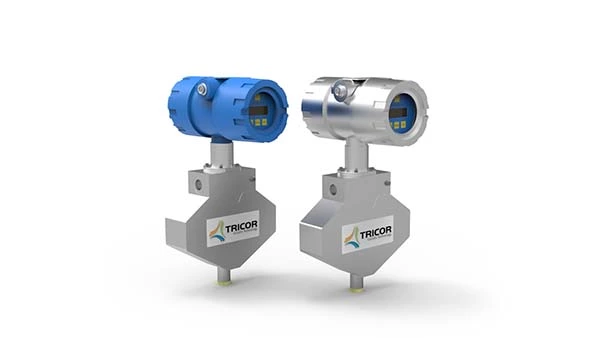

The TRICOR CLASSIC Series TCM 0325 Coriolis Mass Flow Meter has a maximum mass flow rate of 325 kg/hr (12 lb/min) or 49 bbl/day and nominal size of DN4 (1/8”), and is rated for process pressures up to 200 bar (2900 psi). Standard accuracy for the TCM 0325 is 0.3%, but with a custom calibration, 0.1% accuracy is possible. The diamond shape (D-shape) tube design has the best overall performance of any Coriolis tube shape. The mechanical advantages of this design include the best signal-to-noise ratio and reduced effects of external vibrations, thus improving zero stability.
| Flow Rate | Mass Flow Rate (max.): 325 kg/h [12 lb/min] |
|---|---|
| Pressure Rating | 200 bar [2,900 psi] |
| Accuracy (Liquids) | Basic Accuracy (Mass Flow): ±0.3 % (option: up to ±0.1 %) of flow rate |
| Accuracy (Gases) | Basic Accuracy (Mass Flow): ±1 % (option: up to ±0.5 %) of flow rate |
| Density | Density Range: up to 2,500 kg/m3 [2.5 g/cm3] |
| Temperature | Process Temperature Range: -40 °C … +100 °C [-40 °F … +212 °F] |
| Materials (Wetted Parts) | Tubes: 1.4404 [AISI 316L] |
