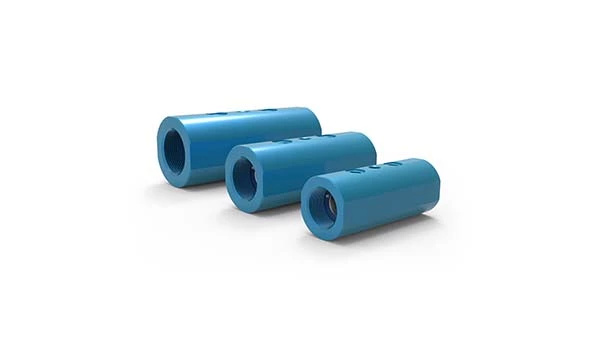

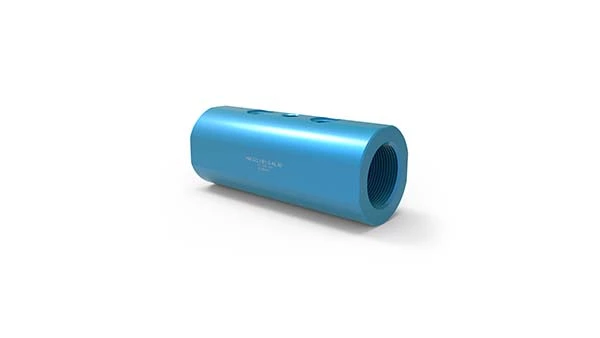

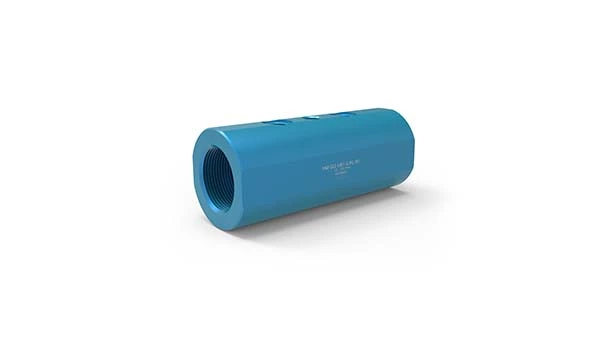

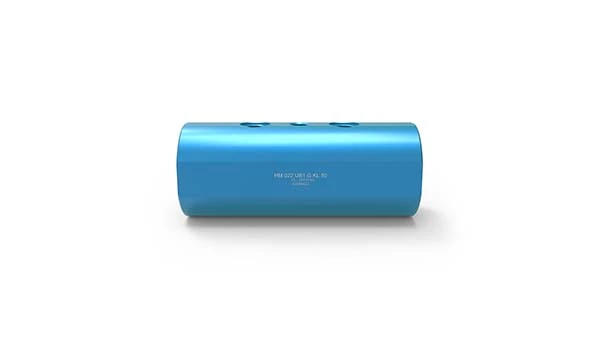

Aluminum Turbine Flow Meters with ball bearings for hydraulic applications

Measuring Ranges

1.2 up to 600 l/min

Repeatability

±0.5 % (under the same conditions)

Linearity

±2.5 % of actual flow (viscosity 30 mm²/s)

Viscosity Range

30 mm2 /s

Materials

Housing: as per DIN 3.4365 [EN AW-7075]
Wheels: as per DIN 1.4122
Bearing:
HM 007 – 011: Tungsten carbide sleeve bearing
HM 022 – 030: Stainless steel ball bearing

Pressure

up to 420 bar [6,090 psi]

Medium Temperature

-40 °C up to +120 °C [-40 °F up to +248 °F]
