Gear Flow Meters for High Pressure Applications with Autoclave connections

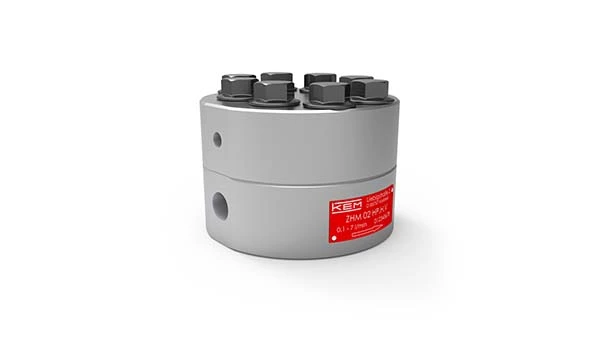

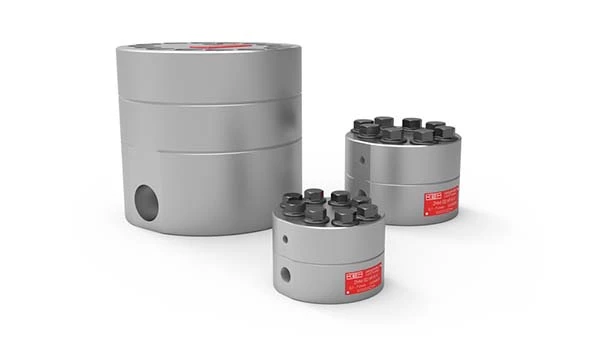

ZHM HP
Thanks to their robust design, gearwheel flowmeters are particularly well suited for volume flow measurement in high-pressure applications and in tough environments, for example in offshore and subsea applications.
The ZHM HP is suitable for applications wherever hydraulic fluids, additives, and injections have to be measured or dosed under high pressures.
| Measuring Ranges | 0.005 up to 70 l/min |
|---|---|
| Measuring Accuracy | up to ±0.1 % |
| Repeatability | ±0.05 % (under the same conditions) |
| Linearity | ±0.5 % of actual flow (viscosity ≥ 30 mm²/s) |
| Materials | Housing: as per DIN 1.4404 [AISI 316L] |
| Pressure | up to 1,035 bar [15,000 psi] |
| Medium Temperature | -40 °C up to +180 °C [-40 °F up to +356 °F] (others on request) |
