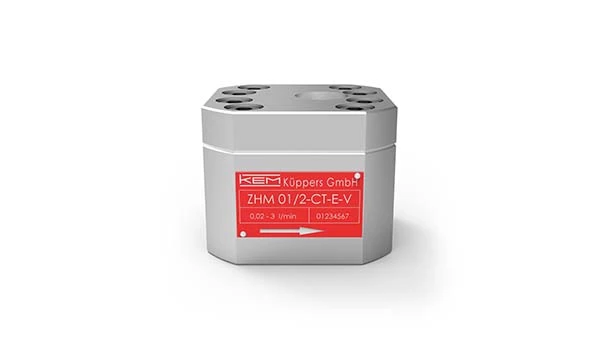

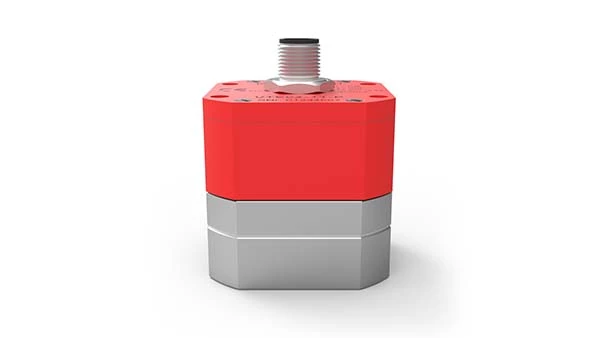

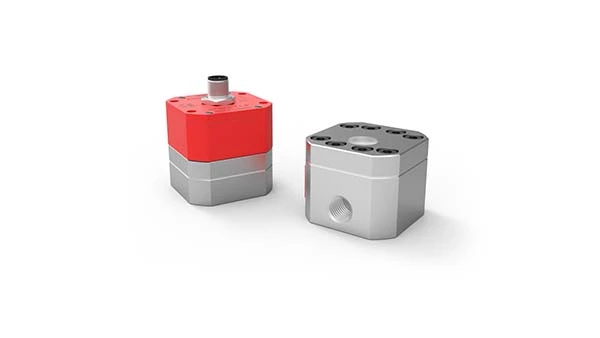

Gear Flow Meters in Cartridge Design for paint applications, optimized flushing and weight design
ZHM CT
The ZHM series in the patented cartridge construction (ZHM CT) was developed primarily for coating applications. Structural characteristics such as flat seals and free-standing axes ensure optimum flushing.
Cartridge construction drastically reduces the weight compared to the standard version, and permits mounting directly in the spraying head on the robot arm without restricting the robot’s dynamic behavior. The flowmeters have a very high resolution that supports extremely precise flow rate measurement across a very broad measuring range.
| Measuring Ranges | 0.005 up to 3 l/min |
|---|---|
| Measuring Accuracy | up to ±0.1 % |
| Repeatability | ±0.05 % (under the same conditions) |
| Linearity | ±0.5 % of actual flow (viscosity ≥ 30 mm²/s) |
| Materials | Housing: as per DIN 1.4305 [AISI 303] |
| Pressure | up to 200 bar [2.900 psi] |
| Medium Temperature | -40 °C up to +180 °C [-40 °F up to +356 °F] (others on request) |
