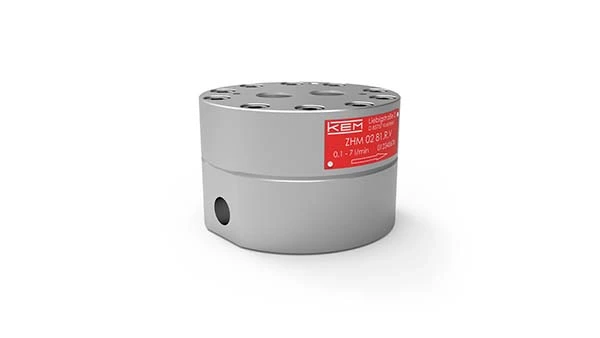

Gear Flow Meter with ball bearing for low viscous, lubricating fluids
ZHM MK
The ZHM MK gear flow meter (ball bearing design) are flow meters which are mainly used in lubrication and non-viscous liquids. Therefore they are used especially for the fuel consumption measurement and the dosing of low viscous media.
| Measuring Ranges | 0.002 up to 70 l/min |
|---|---|
| Measuring Accuracy | up to ±0.1 % |
| Repeatability | ±0.05 % (under the same conditions) |
| Linearity | ±1.5 % of actual flow (viscosity ≥ 5 mm²/s) |
| Materials | Housing: as per DIN 1.4305 [AISI 303], 1.4404 [AISI 316L] |
| Pressure | up to 420 bar [6,000 psi] |
| Medium Temperature | -40 °C up to +180 °C [-40 °F up to +356 °F] |
