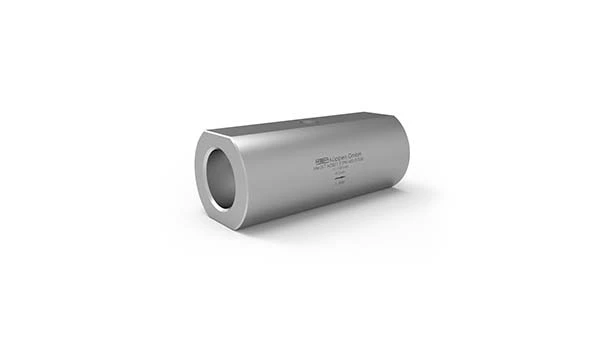

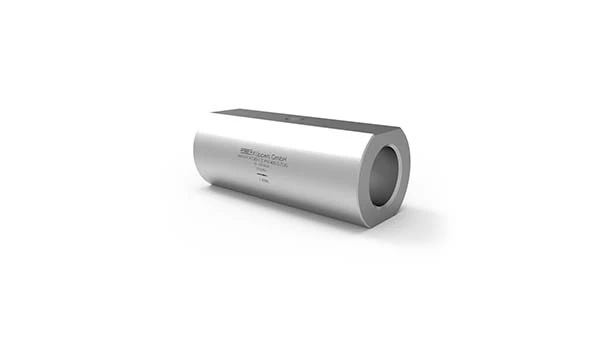

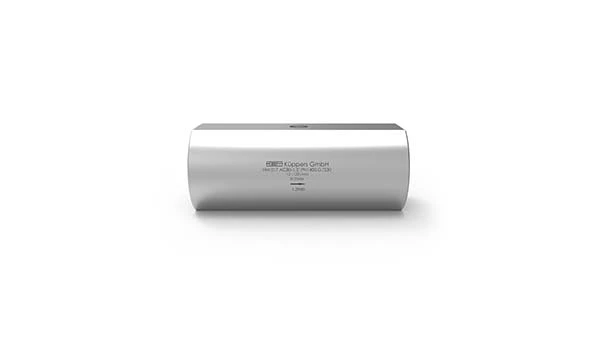

Turbine Flow Meters for High Pressure Applications with high pressure connections for operating pressures up to 1,400 bar [20,300 psi]
HM AC
The HM HP (HP for high pressure connection) turbine flow meter series is used to measure continuous and discontinuous flow rates with very high operating pressures. They are mainly used for lubrication and non-lubrication media. They are particularly suitable for low and medium viscosity liquids, such as water, emulsions, additives and inhibitors.
| Measuring Ranges | 0.3 up to 120 l/min |
|---|---|
| Repeatability | ±0.05 % (under the same conditions) |
| Linearity | ±1 % of actual flow |
| Viscosity Range | 0.8 up to 30 mm²/s |
| Materials | Housing: as per DIN 1.3980 |
| Pressure | up to 1,400 bar [20,300 psi] |
| Medium Temperature | -40 °C up to +150 °C [-40 °F up to +302 °F] |
